Compact 2/3 Port Solenoid Valves/Air Operated Valves

Pinch Valve/Air Operated Type LPVA

    ･ Easy tube replacement from front access
    ･ Removal together is possible. Max. 40% work time reduction
    ･ Compact, Lightweight
    　Small pitch mounting is possible.
    ･ With cover
    ･ Selectable port position according to the installation conditions
    ･ Tube size can be changed.

    Related Equipment: Solenoid Type Pinch Valve LPV Series
Safety Instructions　2 Port Solenoid Valves for Fluid Control Precautions　Series Variations　Green Procurement (RoHS)
SeriesActuationValve typeTubing O.D. sizePort position
LPVAAir operated typeN.C. type
N.O. type		ø3/8", ø7/16", ø1/2"Cover open direction 0°
Cover open direction 90°
Cover open direction 180°
Cover open direction 270°

Features

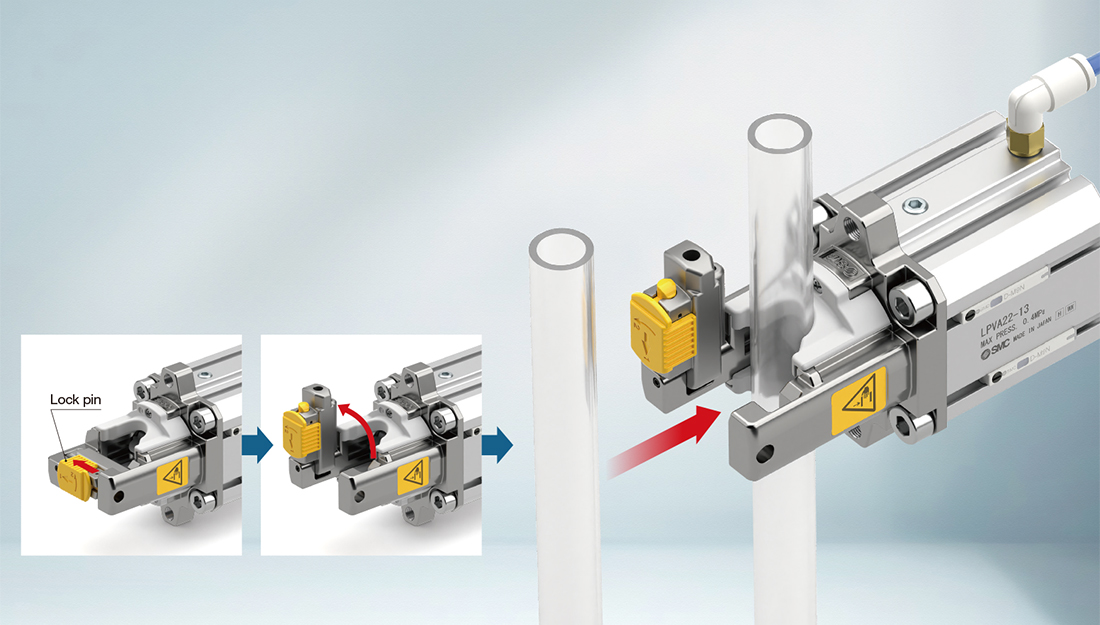

Easy tube replacement from front access

Just open cover and insert tube

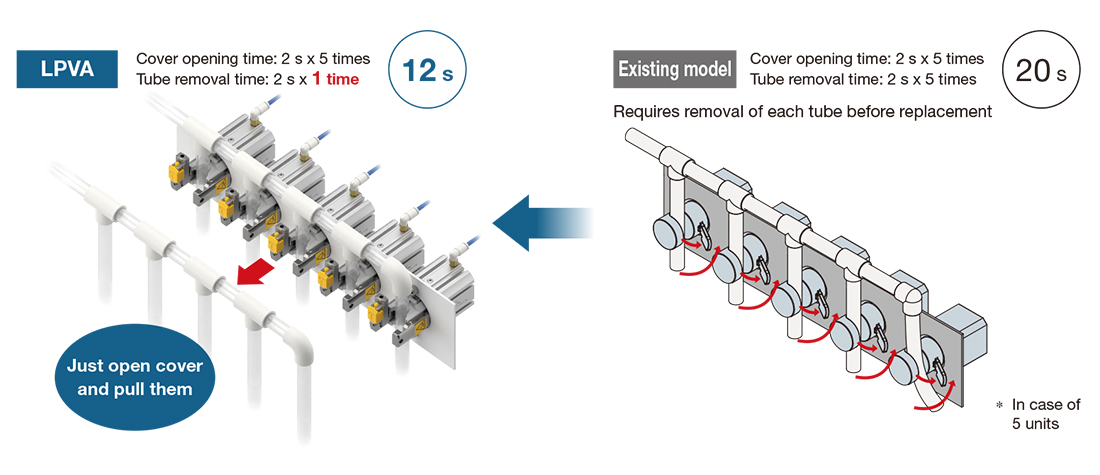

Max. 40% work time reduction

Removal together is possible: No need to remove each tube individually

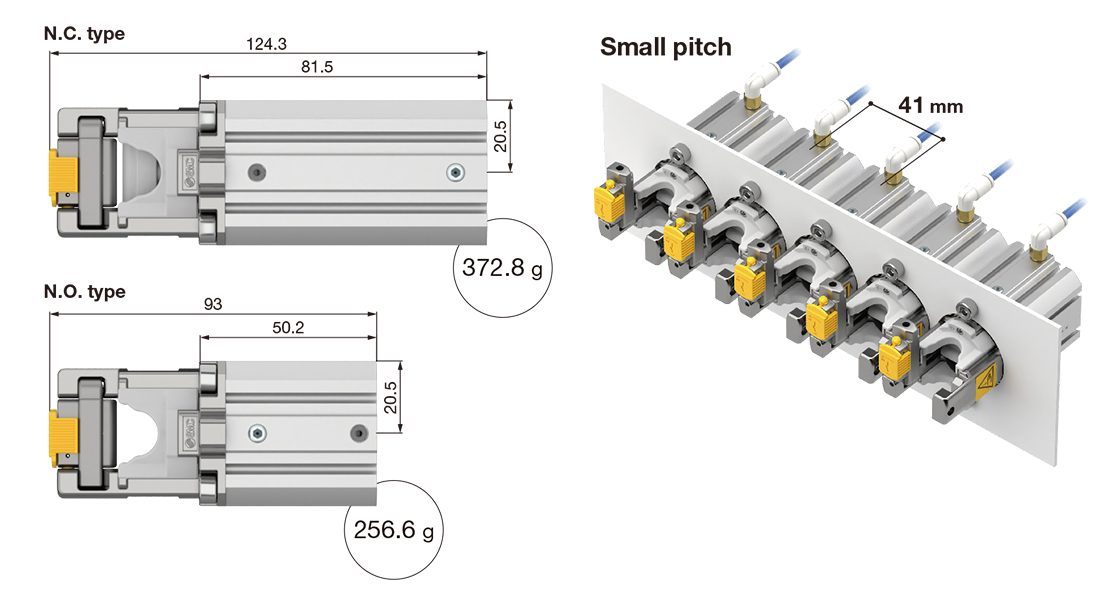

Compact, Lightweight

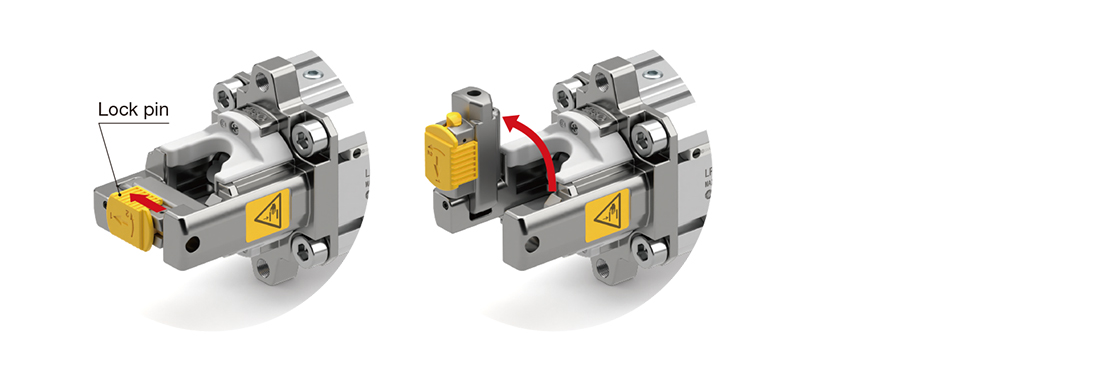

With cover

A structure that can be easily opened and closed

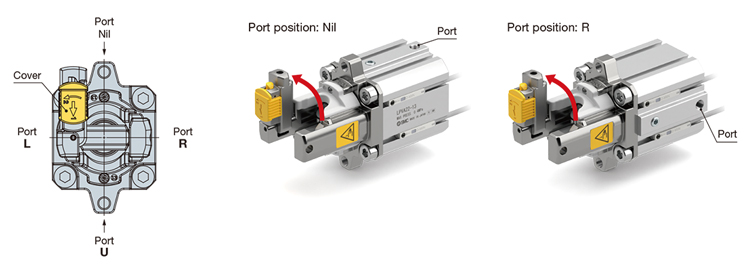

Selectable port position according to the installation conditions

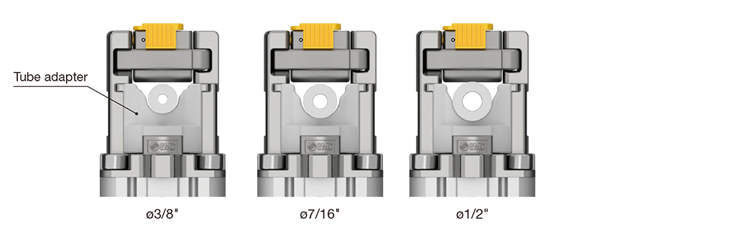

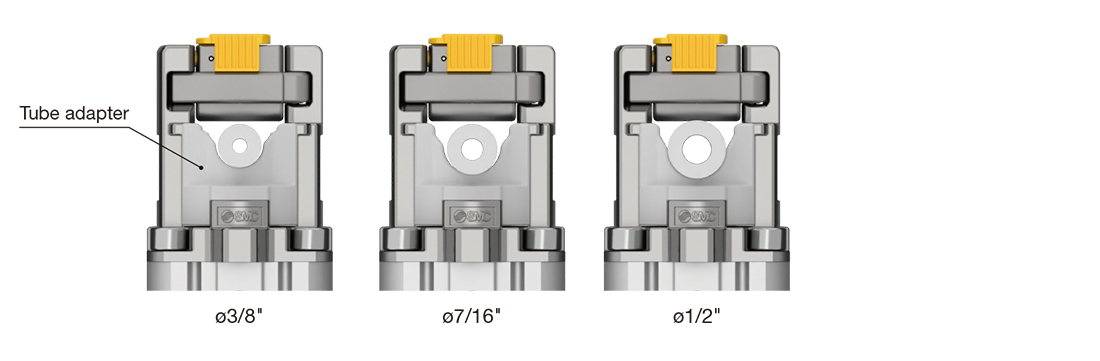

Tube size can be changed.

Compatible with 3 tube sizes by exchanging tube adapter

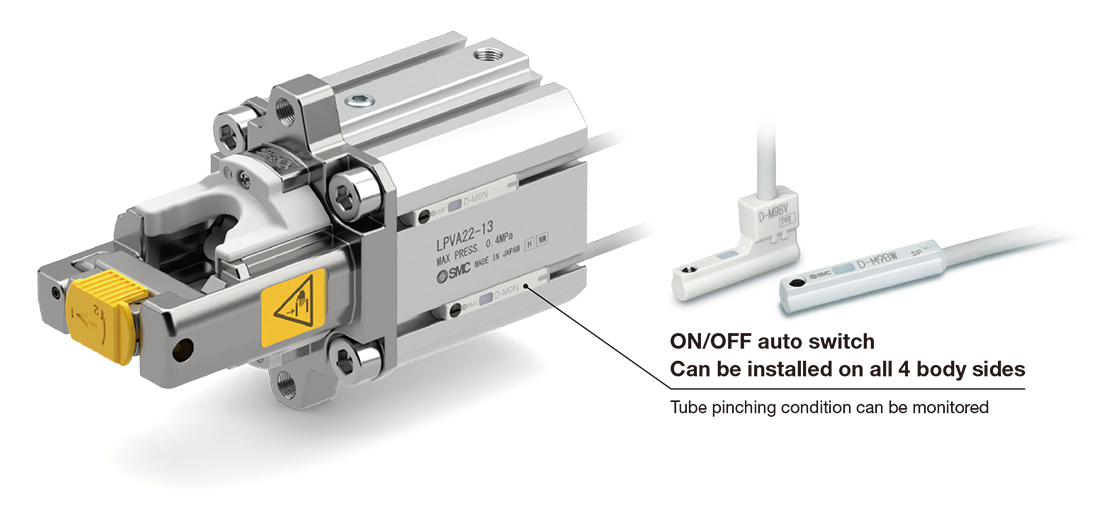

ON/OFF auto switch can be installed on all 4 body sides.

Tube pinching condition can be monitored.

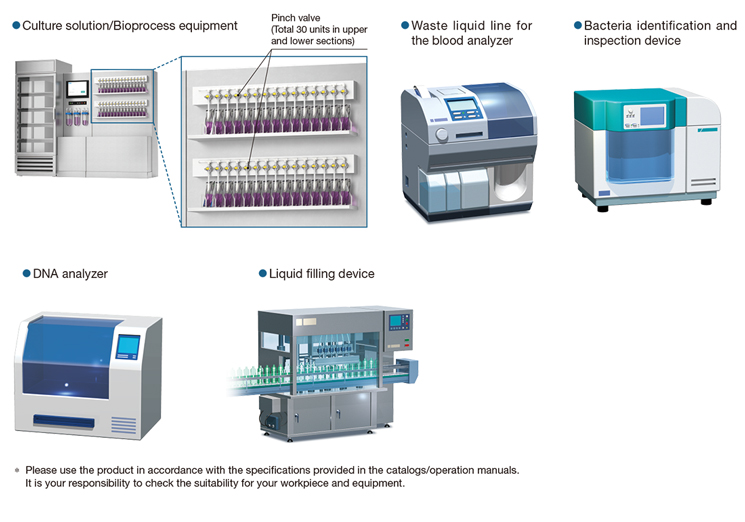

Application Examples
