Filter Regulators

Filter Regulator AW-D

    ・Integrated filter and regulator units save space and require less piping.
    ・Easy to handle
    　Easy to hold when unlocked
    ・Better visibility & environmental resistance
    　2-layer construction: The bowl is covered with a transparent bowl guard!
    　Better visibility: 360°
    ・Interchangeability is maintained.
    　The mounting pitch for panel mounting is interchangeable with the AW(K)-B.
    　The brackets and set nuts are the same for both existing and new products.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
    2D CAD
    Click here for 2D CAD
  • Filter Regulator AW-D
    Manual
    Series View search result
    AW20 to 60-DView search result
Safety Instructions　F.R.L. Units/Precautions　Product Selection Guide
Green Procurement (RoHS)　Element Part No.
SeriesPort sizeSet pressure (MPa)Filtration (μm)
AW20 to 60-D1/8，1/4，3/8，1/2，3/4，10.05 to 0.85
0.02 to 0.2		5

Features

Modular Design with Uniform Body Style

A right angle square type pressure gauge and a cross adapter attachment have been added. New

Transparent bowl guard

Better environmental resistance: The transparent bowl guard protects the inner bowl!



Better visibility: 360°

  • No tools are required.

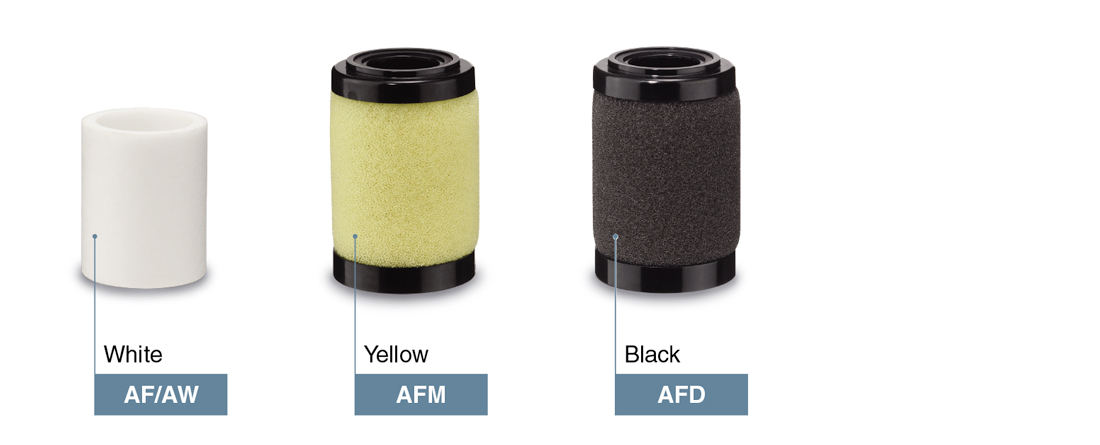

    Easier replacement of the element
    * AF20-D to AF40-D only

Selection of pressure gauges, Easy to handle

Mounting (Single unit)

・The mounting pitch for panel mounting is interchangeable between the AR20(K)-D to AR40(K)-06-D and the AR(K)-B series and between the AW20(K)-D to AW40(K)-06-D and the AW(K)-B series.
The brackets and set nuts are the same for both existing and new products.

Series Configuration

Table of Modular F.R.L. Unit Combinations for AC Assembly

Attachment List

Space saving/Reduced piping labor

Improved piping design flexibility

The direction the pressure gauge faces can be changed freely.

Improved piping design flexibility

Size conversion is possible

・Flow capacity UP
・Extended maintenance cycle

Simple Specials System

A system designed to respond quickly and easily to your special ordering needs

Please contact your local sales representative for more details.

Examples of Simple Specials
